Reliable high performance conventional Aluminum wood drying kiln from China

Good quality Wood Drying Chamber for sales
Good quality Wood Drying Chamber for sales
We have installed more than 10 kilns since 2011, and we are satisfied with the kilns supplied by TECH Drying. General Manager of NTP, Australia

—— Vince Corlett

I'm Online Chat Now

Reliable high performance conventional Aluminum wood drying kiln from China

China Reliable high performance conventional Aluminum wood drying kiln from China supplier
Reliable high performance conventional Aluminum wood drying kiln from China supplier Reliable high performance conventional Aluminum wood drying kiln from China supplier Reliable high performance conventional Aluminum wood drying kiln from China supplier

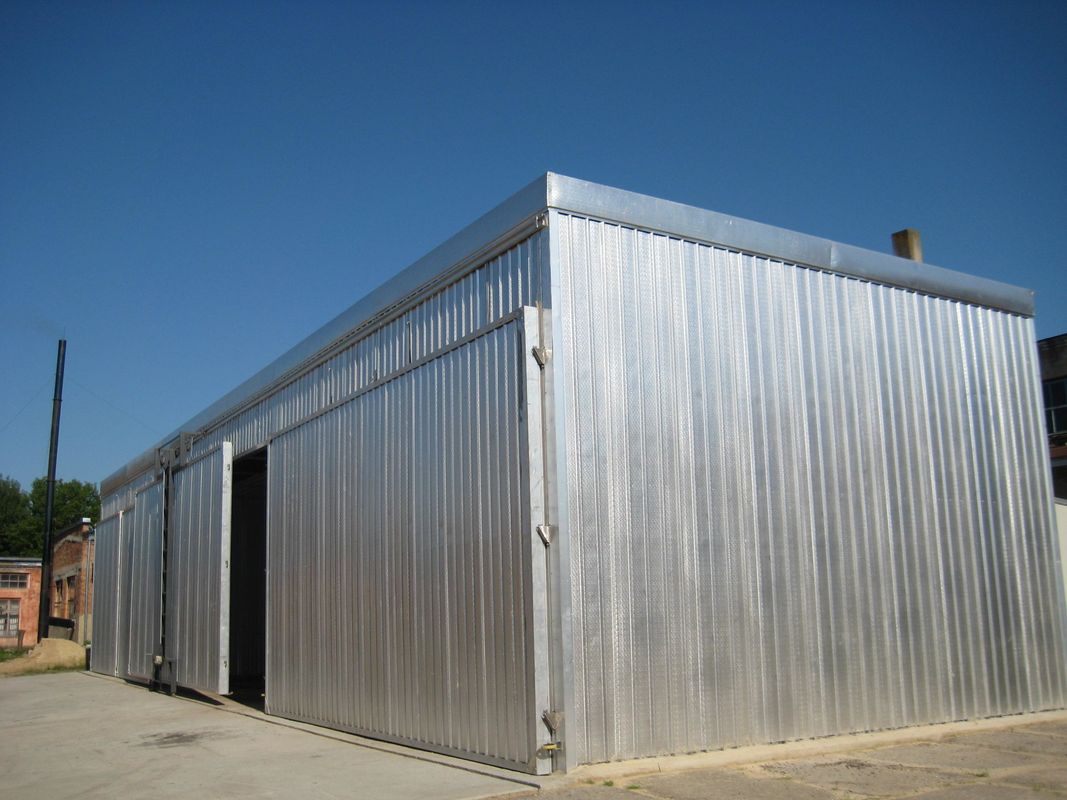

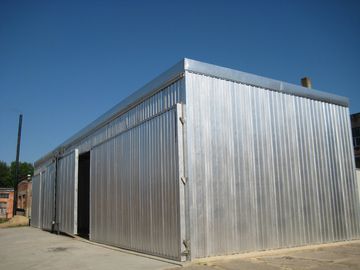

Large Image :  Reliable high performance conventional Aluminum wood drying kiln from China

Product Details:

Place of Origin: CHINA
Brand Name: TECH
Certification: CE
Model Number: ZQJ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sea worth packing
Delivery Time: 15-30days
Payment Terms: L/C, T/T
Supply Ability: 500 sets/year
Contact Now
Detailed Product Description
Bearing Structure: Aluminum/Aluminum Alloy Insulation: Fiberglass
Mode Of Control: Fully Automatic Heat Transfer Media: Steam/hot Water/thermal Oil
Capacity: 20-200m3 Way Of Loading: Forklift
Country Of Origin: China Warranty: One Year

Reliable high performance conventional Aluminum wood drying kiln from China



1. Product Description

  • Tried and tested, favorably priced wood drying kiln for both hardwood and softwood.
  • Flexible equipment variants for each and every demand.
  • Heat transfer media can be steam,hot water and thermal oil.
  • With the TECH Conventional drying kiln type we offer you a tailor-made drying kiln which is made to suit your requirements.

2. Specification



List of standard models



Model

Kiln external dimensions(m)

W×D×H

Kiln internal dimensions(m)

W×D×H

Kiln capacity(m3)

Highest temperature

(℃)

Total power

(kw)

ZQJ 20 4.8×4.4×5.9 4.4×4.2×4.5 20 100 2×3.0
ZQJ 30 4.8×5.5×5.9 4.4×5.3×4.5 30 100 2×3.0
ZQJ 40 4.8×6.6×5.9 4.4×6.4×4.5 40 100 2×3.0
ZQJ 50 4.8×7.7×5.9 4.4×7.5×4.5 50 100 3×3.0
ZQJ 60 7.0×6.6×5.9 6.6×6.4×4.5 60 100 3×3.0
ZQJ 75 7.0×7.7×5.9 6.6×6.4×4.5 75 100 4×3.0
ZQJ 80 9.2×6.6×5.9 8.8×6.4×4.5 80 100 4×3.0
ZQJ 100 9.2×7.7×5.9 8.8×7.5×4.5 100 100 5×3.0
ZQJ 120 9.2×8.8×5.9 8.8×8.6×4.5 120 100 6×3.0
ZQJ 125 11.4×7.7×5.9 11.0×7.5×4.5 125 100 6×3.0
ZQJ 150 11.4×8.8×5.9 11.0×8.6×4.5 150 100 7×3.0




3. Application

For drying of softwood and hardwood



4. Advantages

Long durability, energy efficient, and low drying defects

5. Functiopnal diagram

Reliable high performance conventional Aluminum wood drying kiln from China



What Is Kiln Drying? The Reasoning Behind Drying Wood

Lumber Mill Kiln



































The Kiln Drying Process

Lumber and LogsWhen trees are felled and brought to a lumber mill, the first step is usually to debark and sort the logs by species, size or by end use. Logs destined for wood flooring, for example, are then sawn into rough boards of the required dimensions. These are often edged or trimmed for length before they are dried.

Drying can be done either by air or by kilns, which use circulating heated air to more rapidly remove the excess moisture from the wood. Each charge (or kiln load) is sorted by species and dimensions to optimize the process and to ensure that the final moisture content levels are even across the charge. After the wood has reached the correct moisture level for that species, it is sent through the planer and planed to its final dimensions, sorted to grade and shipped out. For wood flooring or other specific end products, the wood is typically shipped to a manufacturer for further planing, processing, and finishing. Mills and manufacturers alike invest time, money and training into their drying processes to provide optimal grade products at the correct moisture levels for their customers.

So if the wood leaves the kiln at the required moisture content level, the moisture content process is complete, right? It might seem feasible, but in reality, kiln drying is only the first step of a wood product’s life-long interaction with moisture. Kiln drying significantly reduces the moisture content of green lumber, but there’s more to be considered.





FAQ:

1. How to choose size and capacity of the kilns?

It depends on time for drying cycle, and volume to dry per cycle or month.

2. How long does each drying cycle take.

It depends on species, size of timber, moisture content before drying, and moisture content after drying.

3. What to be done before installation of kilns?

To complete concrete foundation according to seller's drawings, and get power and water supply in position.
