Product Details:
|
| Material: | Aluminum And Stainless Steel | Mode Of Control: | Automatic |
|---|---|---|---|
| Heating Medium: | Steam/hot Water/thermal Oil | Capacity: | 75m3 |
| Species To Kiln Dry: | Hardwood And Softwood | ||
| Highlight: | 100m3 industrial wood dryers,Kiln industrial wood dryers,100m3 kiln dryer |
||

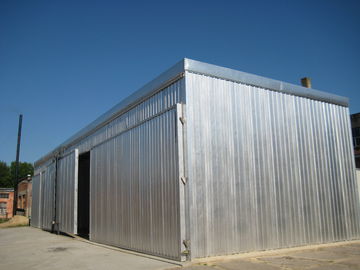

Aluminum Alloy Wood Kiln dryer
Technical specification
| Kiln dimension & capacity: Model RSJ75 | |
| Kiln external dimensions: | Width 7000 mm |
| Depth 7700 mm | |
| Height 5900 mm | |
| Kiln internal dimensions: | Width 6600 mm |
| Depth 7500 mm | |
| Height 4500 mm | |
| Kiln door: | Width 6680 mm |
| Height 4550 mm | |
| Kiln capacity: | Approx 75m3/corresponding to 30mm of thickness of material to be dried and 20mm stickers |
| Type of door: | Lift-sliding door |
| Way of loading: | Forklift |
| Performance data: Model RSJ75 | |
| Bearing structure: | Aluminum alloy |
| Heating medium: | Hot water |
| Humidification medium: | Cold water |
| Type of automatic control system: | HOLZMEISTER M800B (DELHPI)/M828(LiTouch) |
| Number of fans: | 4 units |
| Diameter of fan: | 800mm |
| Volume of circulating air: | 27,000 m3 /h |
| Motor: | 3kw, class IP55 |
| Electricity demand: | 12kw |
| Voltage & Frequency: | 380-440v, 50-60Hz |
| Snow Loading: | 150 Kg/m2 |
| Wind loading: | 120 km/h |
