|Materials:||Aluminum And Stainless Steel||Mode Of Control:||Fully Automatic|
|Heat Transfer Media:||Steam/hot Water/thermal Oil||Humidification Syste:||Steam/ Cold Water|
|Country Of Origin:||China||Warranty:||One Year|
kiln wood drying equipment,
industrial wood dryers
All aluminum fully automatic timber dryer for hardwood and softwood drying
1. BEARING STRUCTURE
The structure of the kiln is made completely of special aluminum alloy AW6063. All the beams, profiles, and roof holding structure as well as wind-bracing have high resistance to corrosion, which are of I, U, L & C .
The complete structure is self-supporting and is mounted on to a base concrete foundation using stainless- steel heavy-duty dowels.
The connecting materials, bolts, nuts &washer are made of stainless steel. The offered bearing structure can bear stress of 150kg/m2 of snow load and wind load of 120km/h.

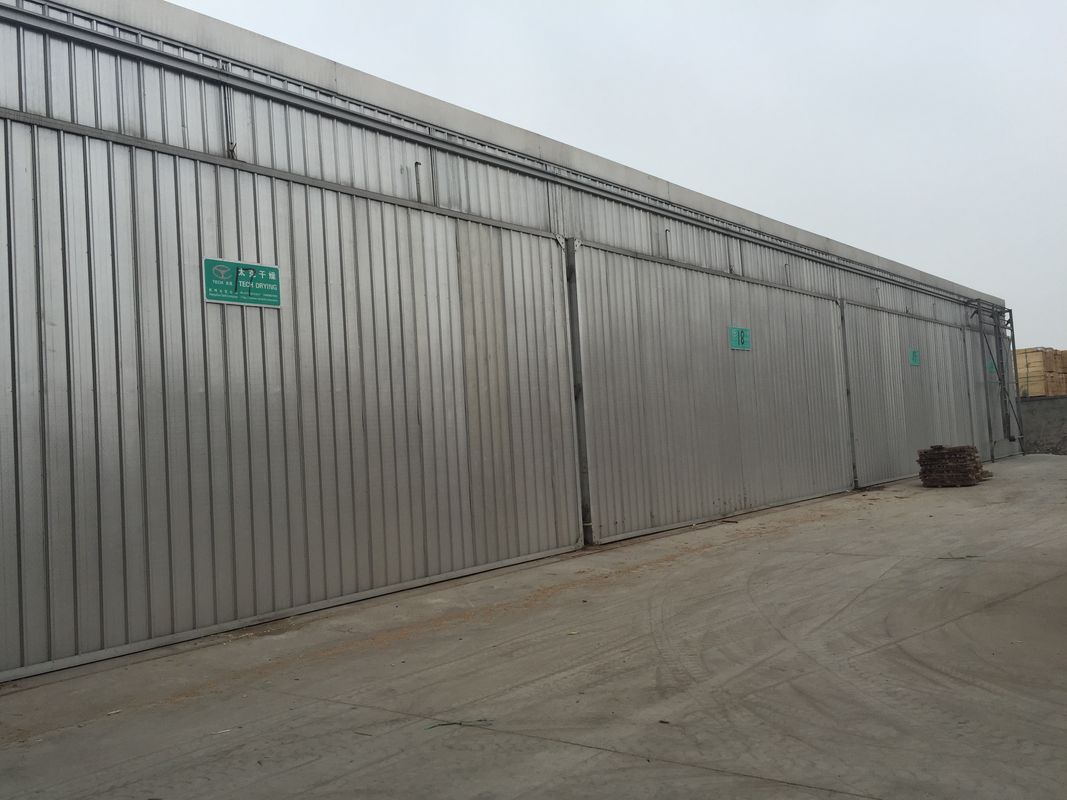

2. KILN CASSETES SHEETING AND INSULATION SYSTEM
The heat insulation system is made of aluminum cassette-panels of alloy with high density non-flammable rock wool thermal insulation of 120mm thickness, the density of rock wool is 55kg/m3, which is higher than that of fiberglass. There is a slope on the roof, avoiding accumulation of rain or snow on the roof. The kiln wall is externally and internally faced with corrugate embossed aluminum sheets with a granulated finish of 1.1 mm. The Cassettes themselves are specially mounted with the supported of aluminum plate between columns of bearing structure. High-temperature caulking between cassettes protects the walls from heat transfer. The caulking is applied at any cassettes joints.
The thermal constant of the jacket penetrability is k=0.45w/m-2.k-1. This is due to the particular construction characteristics of the walls. They are completely fire resistant; they do not absorb moisture, guaranteeing constant operation.
3. KILN DOOR
The lifting –sliding sturdy aluminum door structure profile. The special groove where the strong rubber seal is installed provides optimum tightening alongside the doorframe. The kiln door wall is of the same construction as the kiln and roof walls using rock wool insulation of 120mm.The closing system is equipped with adjustable counterparts which enable the precise adhesion of the door to the kiln structure. The bottom mullions feature nylon rollers on heavy duty stainless pins
4. KILN DOOR CARRIER AND LIFTING DEVICE
The TECH I’ beams monorail carriage design realizes unrestricted movement of the door which hangs vertically in its raised position. Carriage wheels are sealed ball bearing to in any weather conditions.
5. INSPECTION DOOR
The inspection door is included and is of opening 1500×600 mm
with rock wool insulation of 120mm.
It is equipped with a safety handle, easy to open and close.
The inspection door will be placed in rear wall.
6. FALSE CEILING
The chamber is divided by aluminum intermediate ceiling into a technology section where all the technical elements are located and a drying section where the timber to be dried is placed. The intermediate ceiling is mounted on the lower part of the chamber beams and is made of corrugated profile sheets of thickness1.1 mm ensuring the smooth air flow.
7 FANS & MOTORS
The air ventilation is provided by reversible medium pressure fans with high performance level installed in each chamber above false ceiling of the chamber. The fans can perform with the same efficiency and capacity in both direction and at any revolution rate. Each fan has 6 aluminum swinging blades with perfectly symmetrical shape. The aluminum fan φ800 mm impellers are fixed directly on to the shaft of the specially designed motors. The motors are tropically insulated to resist high temperature (IP55) and to work without any problems in environments reaching 100% of moisture content
8 HEATING ELEMENTS
The heating elements use aluminum fin built on stainless steel pipe. Heat exchanger coils are located vertically overhead. All the piping from collectors for the heat exchanger coils up to flanges out of kilns are made in stainless steel. The heat output is designed for the highest demand.
9. THE AIR EXCHANG SYSTEM
The ventilation and suction system of vents are made of aluminum material. Vents make use of pressure and vacuum zones generated inside the chamber which avoids the use of additional fans. The whole system of vents works simultaneously. In this offer the chimney are provided in the chamber ceiling. The vents are positive opening and closing.
10. ELECTRIC BOARD
The board is the modular panel meeting the international standards relevant to protection class IP55. The operating drying components are placed in the electric board. (Switches, relays, fusing etc.)
11. AUTOMATIC CONTROL OF THE DRYING PROCESS HOLZMEISTER M800B (DELPHI)
Every unit is equipped with:
6 pcs of probes to detect the wood moisture
2 pcs of EMC stations/ front and back / For climate controlling
It is a LCD based automatic kiln controller. The kiln dryer controller DELPHI is based on the most advanced electronic technology today available and includes all the best solutions that LOGICA H&S has developed in over ten years of experience in timber drying control systems.
The new user interface, based on a LCD graphic display having a very good readability, allows an easy set-up also to not skilled users, because all setting are made through self-explaining menu and the access to most advanced menus, divided from the ones most commonly used.
Kiln drying is a standard practice in wood production mills and serves to efficiently bring green lumber moisture levels down to “workable” range–moisture content levels that will not end in the myriad of problems that can be caused by excess moisture levels in wood.
These problems include warping and twisting in dimensional lumber, binding or kicking during machining, buckling or crowning in an installed wood floor, and adhesive failures in finished products.
Moisture-related problems can cost millions of dollars in damages each year. Kiln drying is a first step in bringing all wood products to moisture content (MC) levels that will be subject to minimal moisture-related damage.
When trees are felled and brought to a lumber mill, the first step is usually to debark and sort the logs by species, size or by end use. Logs destined for wood flooring, for example, are then sawn into rough boards of the required dimensions. These are often edged or trimmed for length before they are dried.
Drying can be done either by air or by kilns, which use circulating heated air to more rapidly remove the excess moisture from the wood. Each charge (or kiln load) is sorted by species and dimensions to optimize the process and to ensure that the final moisture content levels are even across the charge. After the wood has reached the correct moisture level for that species, it is sent through the planer and planed to its final dimensions, sorted to grade and shipped out. For wood flooring or other specific end products, the wood is typically shipped to a manufacturer for further planing, processing, and finishing. Mills and manufacturers alike invest time, money and training into their drying processes to provide optimal grade products at the correct moisture levels for their customers.
So if the wood leaves the kiln at the required moisture content level, the moisture content process is complete, right? It might seem feasible, but in reality, kiln drying is only the first step of a wood product’s life-long interaction with moisture. Kiln drying significantly reduces the moisture content of green lumber, but there’s more to be considered.
The reality of wood’s nature, and indeed, part of its attraction over the centuries, is that it is a hygroscopic material. Until it is fully sealed, wood constantly interacts with moisture in its environment and will absorb or release moisture as necessary to find a balance with its environment.
Examined closely, wood’s long, hollow cell structure means that each board is composed of bundles of long cells (think of a stack of drinking straws). In a living tree, those pathways function to move moisture and nutrients from the roots to the branches and leaves of the tree. Once the tree is felled, those pathways begin to lose that moisture as the wood dries. That moisture is naturally not replaced as it would be in a living tree, and the wood’s moisture level will drop considerably as it dries. The kiln drying process helps to draw that moisture out while minimizing the damage to the wood that rapid changes might cause.
Why is that so important?
“Wet” or green wood does not function well for anything from campfires to building materials. Its performance as green lumber can be unpredictable because of that inevitable moisture loss after the living tree is felled. As it dries, wood can twist, crack, warp, and shrink in its physical dimensions, making it less than ideal for buildings, flooring or woodworking. It’s an ongoing cycle in wood.
Think of a sponge. When a sponge is wet, it holds moisture in each hole or cell. As it dries, it not only releases that moisture, it shrinks in size. If it has been trimmed to a functional shape, like a rectangle, it may twist or curl as it dries. It does not, though, lose its capacity to reabsorb water when it is present. The sponge’s physical dimensions will change each time it absorbs and releases moisture.
In the same way, wood may have much of its moisture removed during the kiln drying process, but it does not lose the ability to reabsorb moisture that is in its environment. It might be a direct water source, moisture in an adjacent material or even humidity in the air; wood’s cellular structure will be ready to absorb any moisture it contacts.
Even when wood has been kiln-dried, it may have a documented moisture content level, but at any step of the processafter the kiln–transportation, manufacturing, storage or installation–it is possible for wood, even manufactured wood products, to lose additional moisture (in a dry environment) or re-absorb ambient moisture, altering its moisture content level and possibly even its dimensions. If that moisture increase or decrease happens, for example after a wood floor has been installed, buckling, crowning, gaps, or other moisture-related problems can jeopardize the floor’s integrity. Any completed wood project or product can be jeopardized by moisture imbalances in the wood used.
Just as lumber mills and manufacturers invest in accurate wood moisture content management tools and systems, each step of a wood product’s lifespan requires moisture content measurement. Continuing with our wood flooring example, it is just as important that the flooring installer allows each board bundle to acclimate to the job site environment before installation begins as it is for the manufacturer to make sure the moisture content is accurately monitored before it leaves the plant.
An accurate wood moisture meter can provide quick, accurate and reliable monitoring of wood flooring to ensure that the installed floor will not suffer from moisture-related problems like those identified above. Wagner Meters’ non-damaging line of pinless wood moisture meters can take measurements as frequently as necessary without marking the floorboards or causing imperfections that will become visible once the finish is applied. With accurate and current wood moisture content measurement, the flooring can be installed with assurance and finished for long-lasting and durable use.
From forest to final finish, wood’s relationship with moisture must be understood and accurately measured, not just in the kiln but at each step of the way to its final use.
1. How to choose size and capacity of the kilns?
It depends on time for drying cycle, and volume to dry per cycle or month.
2. How long does each drying cycle take.
It depends on species, size of timber, moisture content before drying, and moisture content after drying.
3. What to be done before installation of kilns?
To complete concrete foundation according to seller's drawings, and get power and water supply in position.
