Diesel generator set

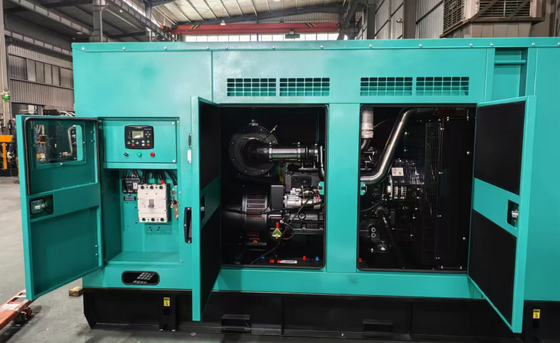

Large Image : Diesel generator set

Product Details:

Place of Origin:	China
Brand Name:	HEYUAN
Model Number:	HGM6110N

Contact Now

Diesel generator set

Description

Voltage:	110-440V	Frenquency:	50/60HZ
Prime Ratings:	150KVA	Engine:	Cummins

General Description
● Engine:Cummins 6BTAA5.9-G12
● Alternator:EvoTec Brushless alternator TCU228M
● Controller:Smartgen HGM6110N
● MCCB: CHINT
● Battery charger, high capacity maintenance-free battery.
● Equipped with industrial silencer and flexible exhaust hose.
● Radiator 40℃ max, fans are driven by belt with safety guard
● English user manual of Engine, alternator, controller.
● Silent canopy with 300L base fuel tank
●Spare Parts:Two batteries.4 Anti-vibration Pads,Tool box etc

Generator Specification
Voltage		HZ	Phase	P.F(COS￠)		Prime Amps	Prime Ratings (KVA/KW)	Standby Ratings (KVA/KW)

400/230		50	3	0.8		216.5	150/120	165/132


Engine Specifications:
Engine model						6BTAA5.9-G12
Engine manufacturer						Cummins
Number of cylinders						6
Cylinder arrangement						Vertical In line
Cycle						4 stroke
Aspiration						Turbo.Air to air charge cooled
Bore×Stroke(mm×mm)						102×120
Displacement (Liter)						5.9
Compression Ratio						17.3:1
Prime power/speed (kW/RPM)						140/1500RPM
Standby power/speed (kW/RPM)						155/1500RPM
Speed governor						Electronical
Cooling system						Positive Water Cooling Cycle
Total lubrication system capacity (L)						16.4
Oil consumption (g/kw.h)						0.4
Fuel consumption at 100% load (g/kw.h)						203
Starter motor						24V DC

Alternator Specification
Alternator model						TCU228M
Alternator manufacturer						EvoTec
Exciter type						Single bearing, 4 pole,Brushless, Self-excited, AVR
Rated speed						1500 RPM
Rated frequency						50 Hz
Phase						3
Rated voltage						400V
Power factor						0.8
Voltage regulation						5%
Insulation grade						H
Protection grade						IP21
Main electrical performance data
voltage					frequency
stable regulation rate	Fluctuation	recover time	instantaneous regulating rate		Stable regulation rate	Instantaneous regulating rate	Recover time	Fluctua-tion
+/-1%	0.5%	1.5s	+20%/-15%		+5%	+/-10%	5S	0.5%

Control System
MODEL			HGM6110N				SMARTGEN
Protection			Parameter				PHOTO
● Low oil pressure			● Volt		● Oil pressure
● High water temp			● Current		● Oil temp
● Over speed			● Power		● Power factor
● Over crank			● Speed		● Running time
● Over load			● Frequency		● Water temp
● Over/low volt					● Battery voltage
● Over/low frequency
● battery charge failure
